Lesson 6: All together

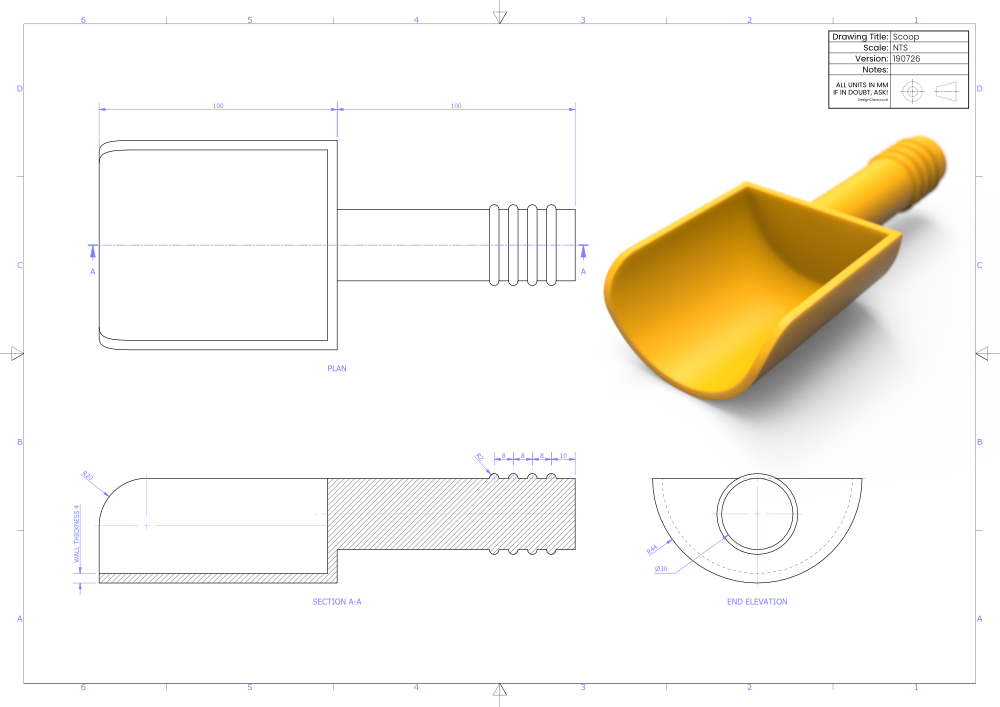

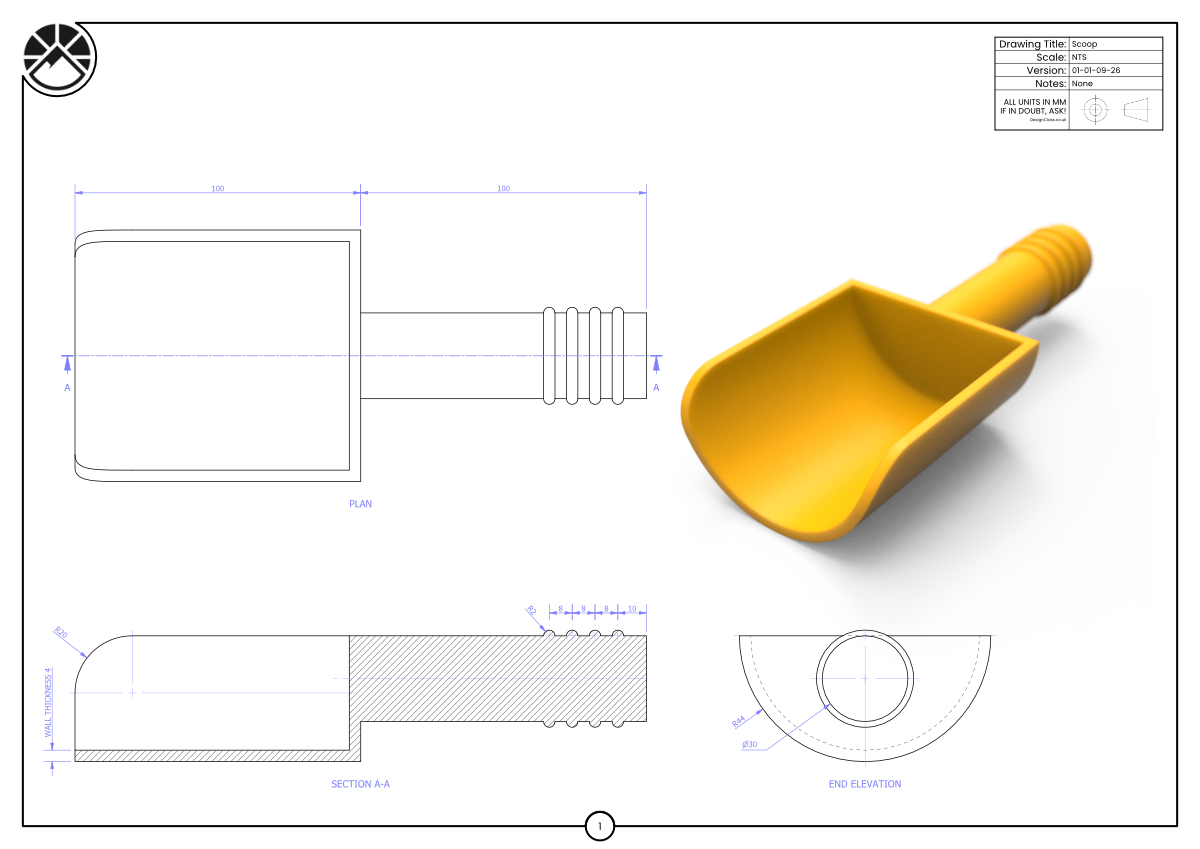

Create the Scoop by revolving the bowl profile shown in Section A‑A. Include the R44 outer curve, the Ø30 opening, and the R20 transition. R

evolve this profile around the centre axis to form the main bowl. Apply a 4 mm wall thickness using Shell to remove two faces.

Combine Revolve with Extrude to create asymmetric geometry.

Use Shell on a revolved body with a thicker wall.

Create and position multiple bodies before combining them.

Bowl profile matches Section A‑A exactly.

Shell produces clean 4 mm walls.

Handle is modelled as a separate body and positioned accurately.

Final combined scoop matches all views.
