Revolve Challenges
Create the Phone Stand by revolving the curved back profile using the R40 arc shown in Section A‑A.
Sketch half the sectional shape and revolve it around the centre axis to form the main body - but only 180°. Add the 10° angled front face using an extrude‑subtract.
Create the phone slot so its top aligns with the revolve centreline.
Learning Intentions
Combine Revolve with Extrude and Cut features.
Use sectional views to position angled and slotted geometry accurately.
Success Criteria
Revolved body matches the R40 profile.
Slot aligns with the revolve centreline.
10° face and chamfers are clean and correctly placed.

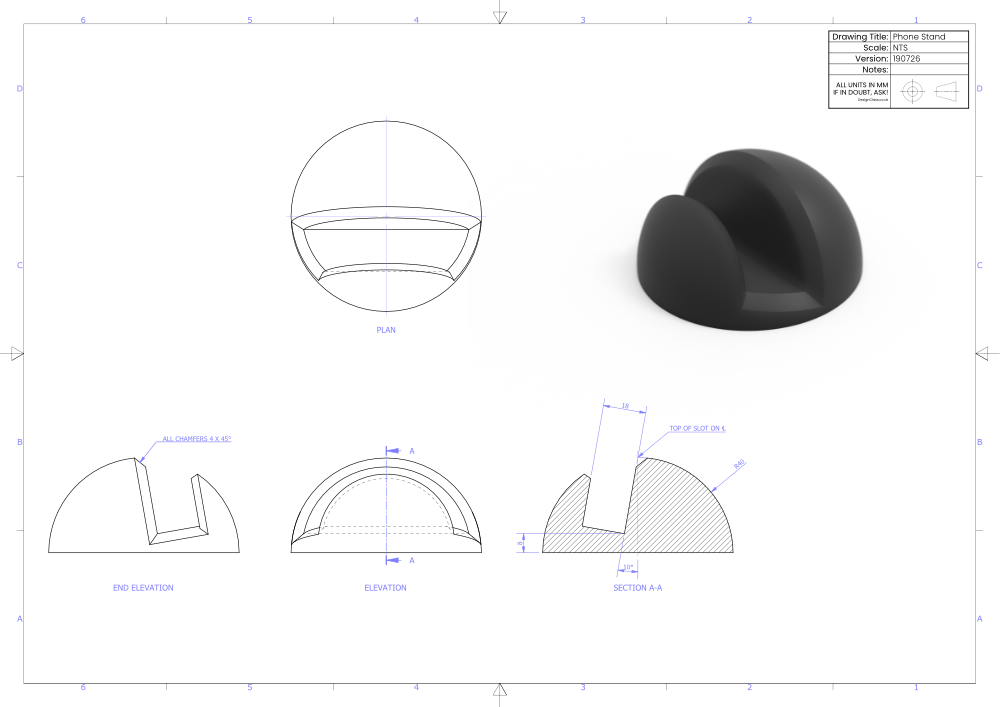

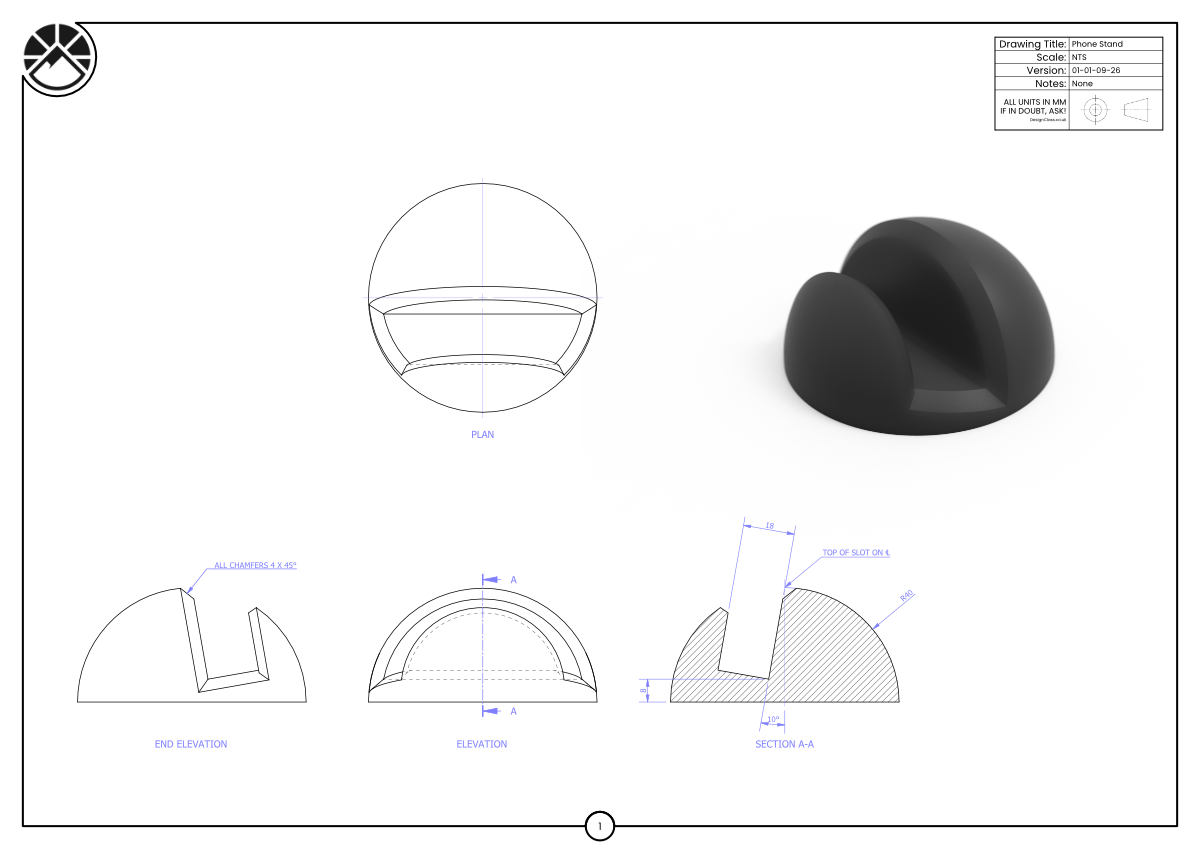

Challenge Drawing
-
