Revolve Challenges
Create the Pot using a single revolve profile. Sketch half of the sectional shape from Section A‑A, including the R37 outer curve, the 3 mm wall thickness, and the R3 internal fillets.
Use the 120 mm height and 12 mm base details to complete the profile.
Revolve the sketch around the centre axis to form the full pot.
Learning Intentions
Use the Revolve command to create symmetrical, rotational solids.
Interpret sectional views to build accurate revolve profiles.
Success Criteria
Profile matches Section A‑A exactly, including R37 and 3 mm walls.
Revolved part is clean, centred, and fully constrained.

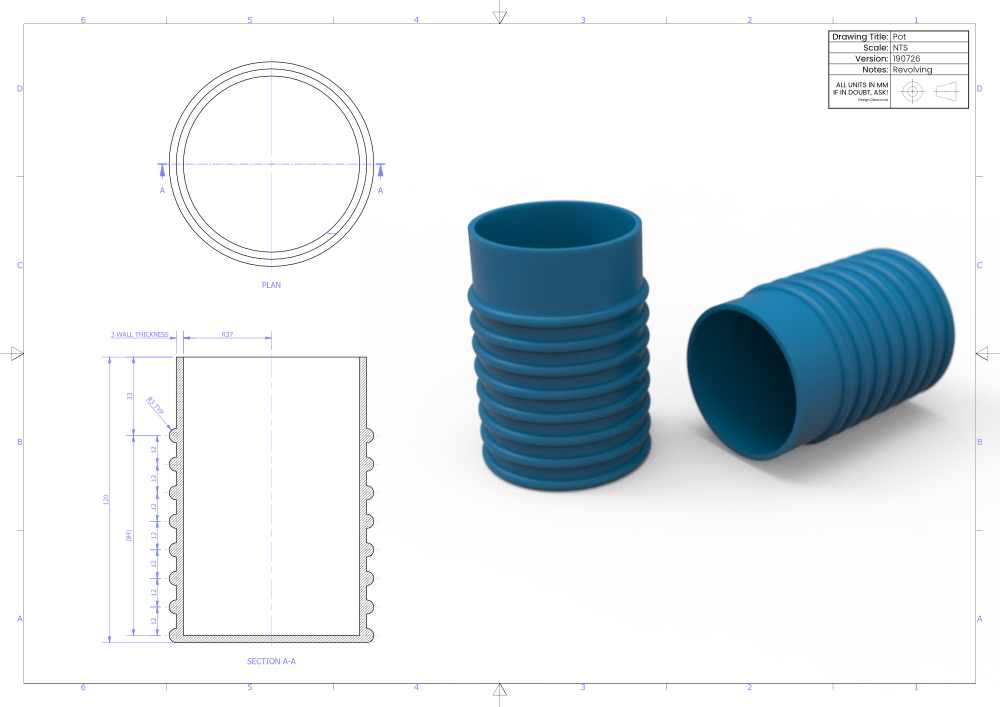

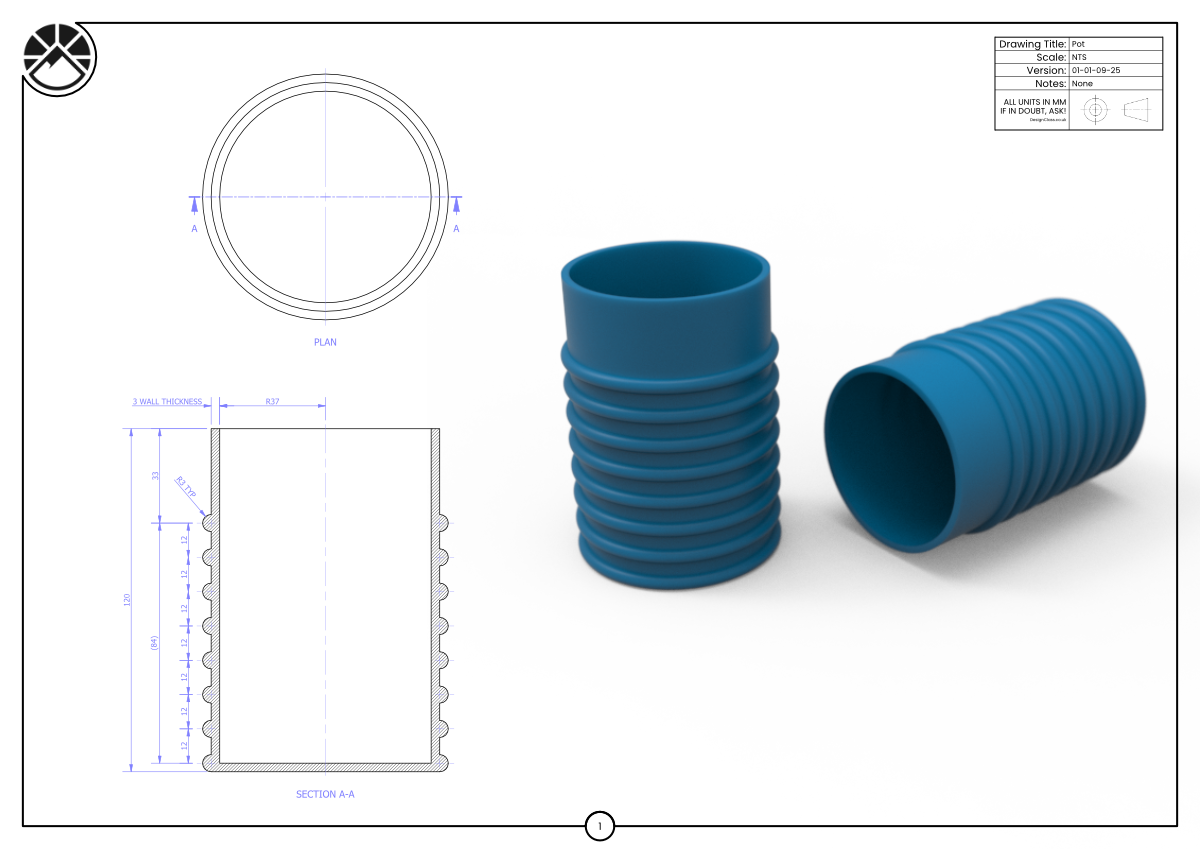

Challenge Drawing
-
