Revolve Challenges
Create the main body using revolve and sketch the sectional profile for the inner curved cut and revolve subtract it…
After completing the geometry, apply decals to the finished model. Use provided images or other simple graphic and place it on the appropriate face of the part. Adjust scale and orientation so the decal sits cleanly on the surface.
Learning Intentions
Use Revolve to create a cutting body.
Combine multi‑body revolve with subtractive modelling.
Apply decals to enhance presentation and realism.
Success Criteria
Two bodies exist before the cut: main body + revolve‑cut body.
Revolve‑cut removes the correct internal shape.
Decal is placed neatly, scaled correctly, and aligned on the surface.

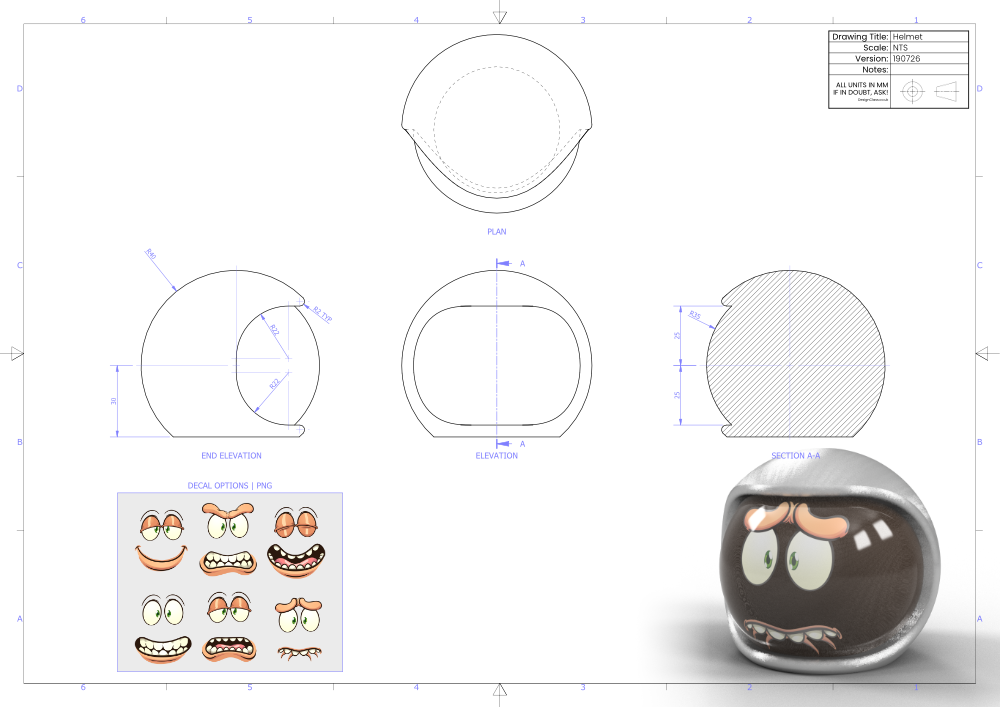

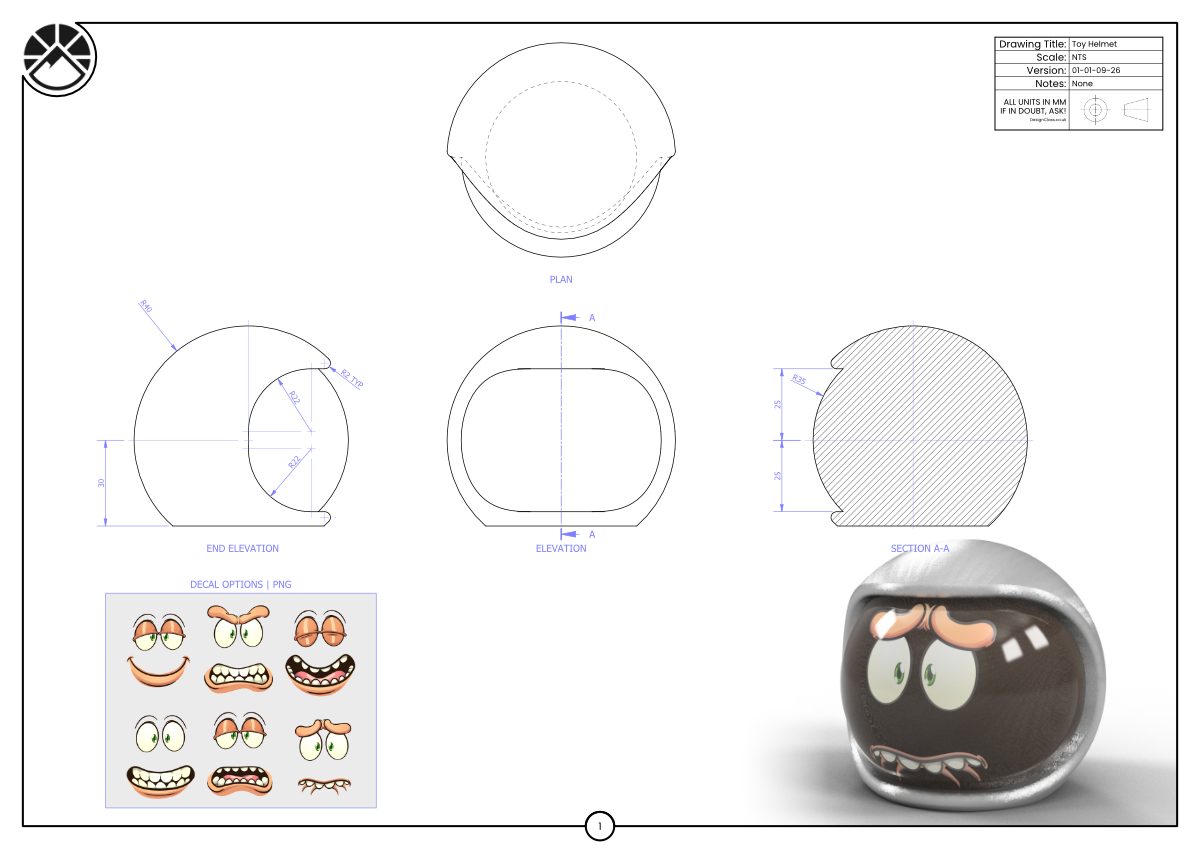

Challenge Drawing
