Extrude Challenges
Model the Tulip by creating separate bodies for each part. When complete, convert the multi‑body part into an assembly so each body becomes an individual component.
Learning Intentions
Create multiple solid bodies within one part file.
Convert bodies into components for top‑down assembly modelling.
Success Criteria
Flower, base and the stem exist as separate bodies.
Exporting as an assembly produces correctly named, separate components.

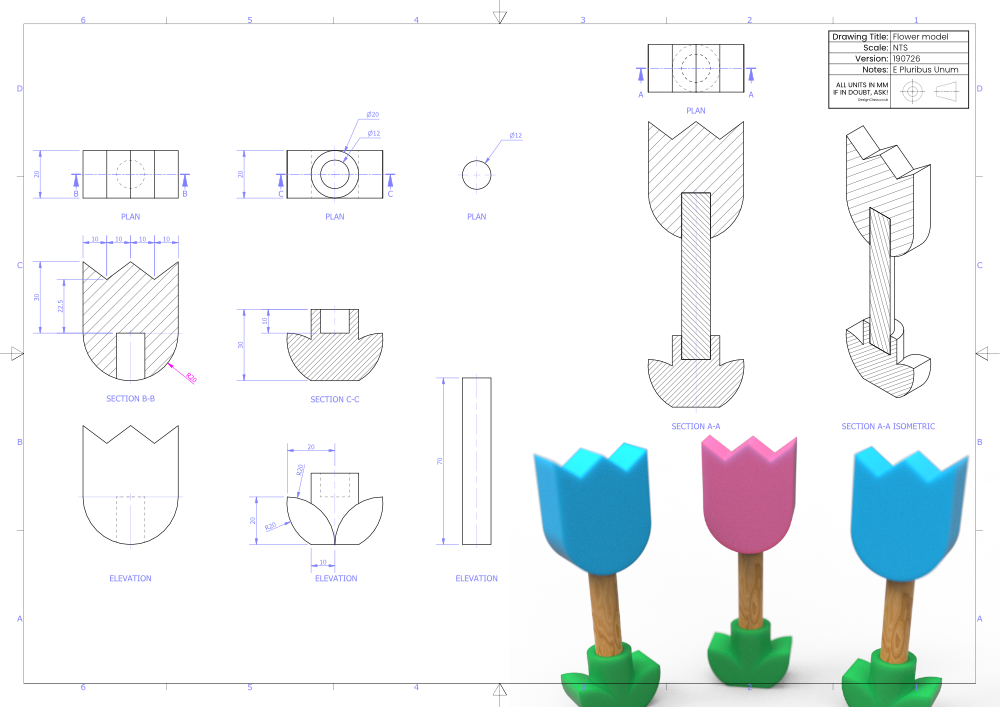

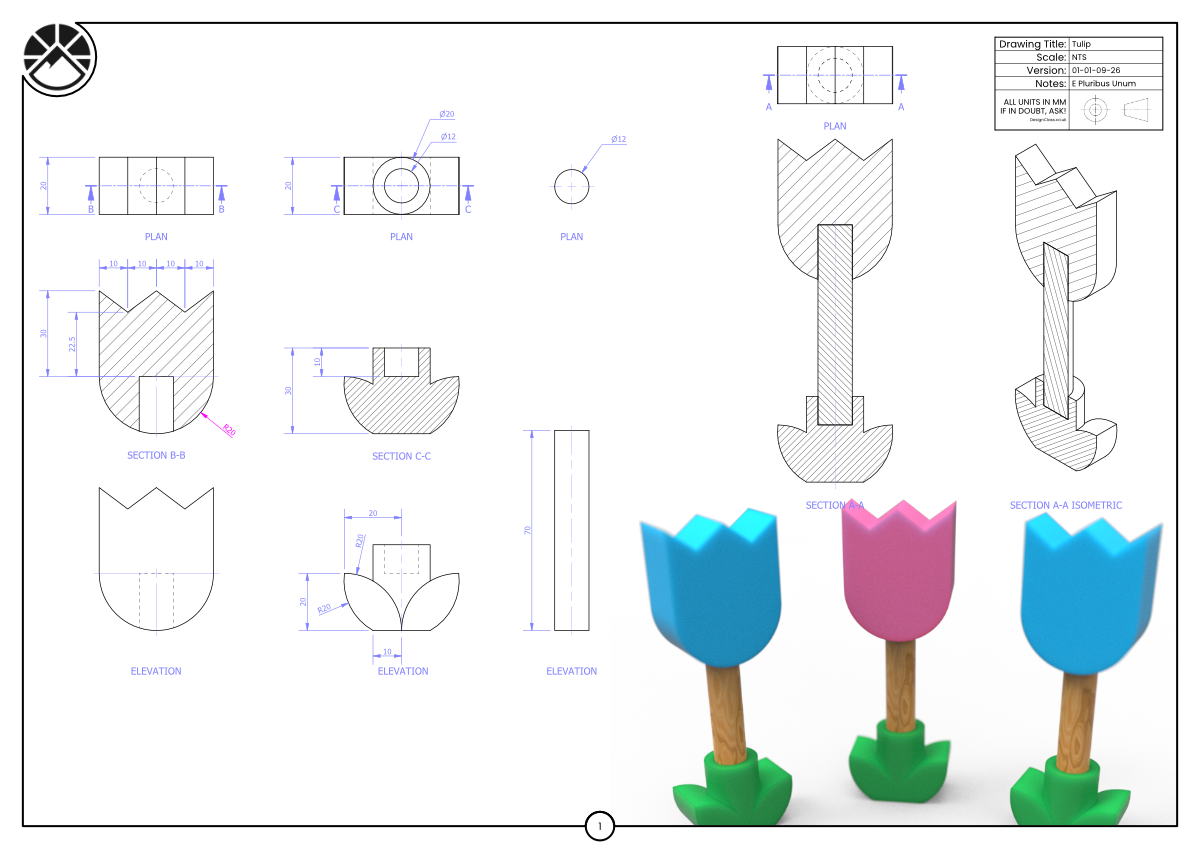

Challenge Drawing
-
Downloads you need to supplement this course.
