Revolve Challenges
Create two separate bodies using Revolve. First, sketch the profile for the coaster holder using the radii and angles shown.
Next, sketch the profile for the coaster and revolve it as a second body inside the same part. Ensure the coaster fits correctly within the holder. Finish by naming both bodies and preparing them for export as separate components.
Learning Intentions
Create multiple revolved bodies within a single part file.
Use sectional views to size and position bodies so they interact correctly.
Prepare multi‑body revolve models for assembly workflows.
Success Criteria
Holder and coaster exist as two separate bodies.
Revolve profiles match Sections A‑A, B‑B, C‑C.
Coaster fits cleanly inside the holder.
Bodies are named and ready for conversion to an assembly.

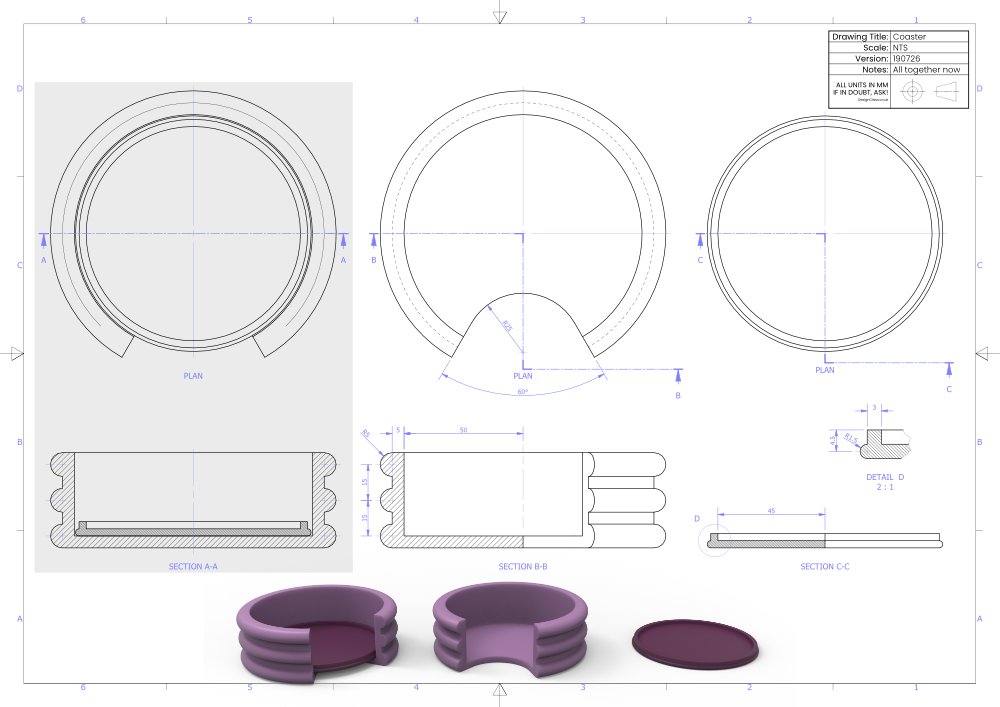

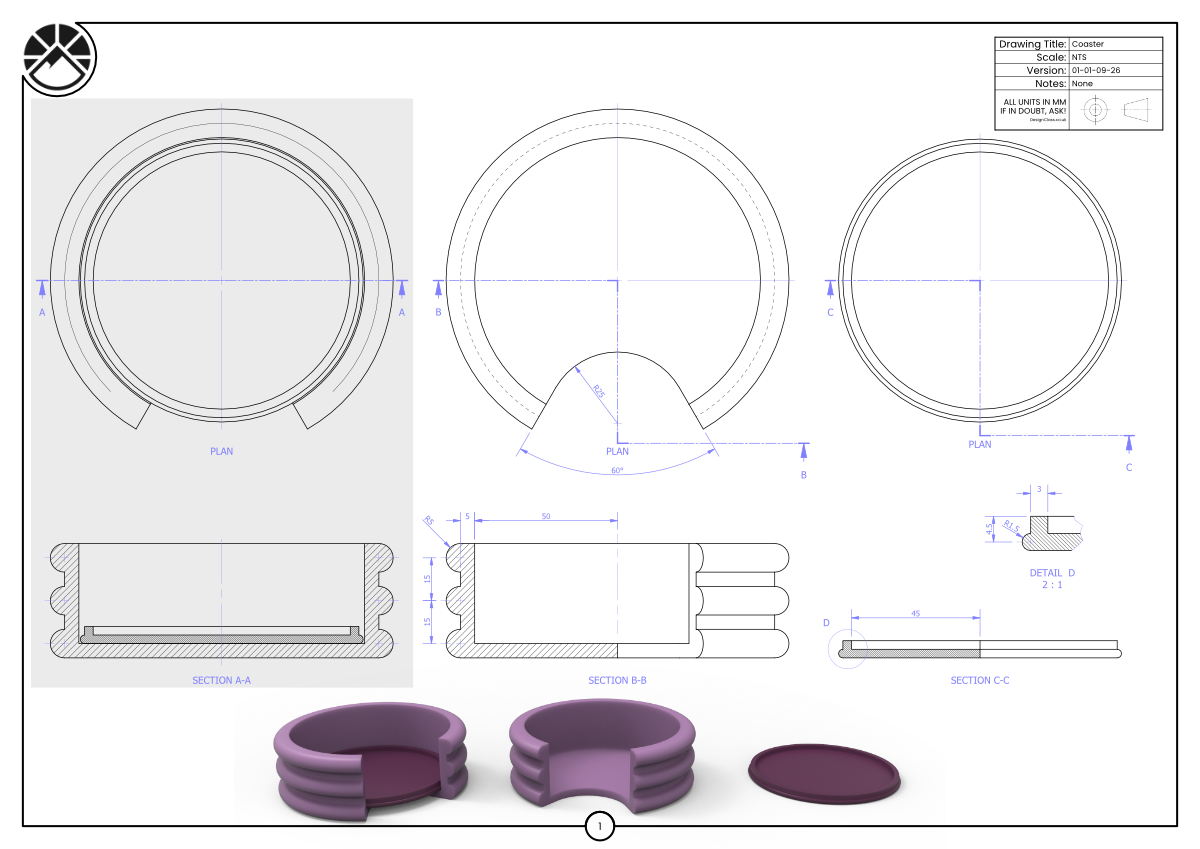

Challenge Drawing
-
