Revolve Challenges
Sketch the sectional profile shown in Section A‑A, including the R60 cone, the R20 neck, and the R5 fillet. Revolve this profile around the centre axis to create the solid funnel.
Apply a 2 mm wall thickness using the Shell command, removing the top face. Use the plan view to confirm the circular geometry and ensure the final shape matches the drawing.
Learning Intentions
Use Revolve to create rotational solids with tapered geometry.
Apply Shell to produce thin‑wall rotational parts.
Interpret sectional views to build accurate revolve profiles.
Success Criteria
Revolve profile matches Section A‑A exactly.
Shell produces clean 2 mm walls throughout.
R5 fillet is present and correctly placed.

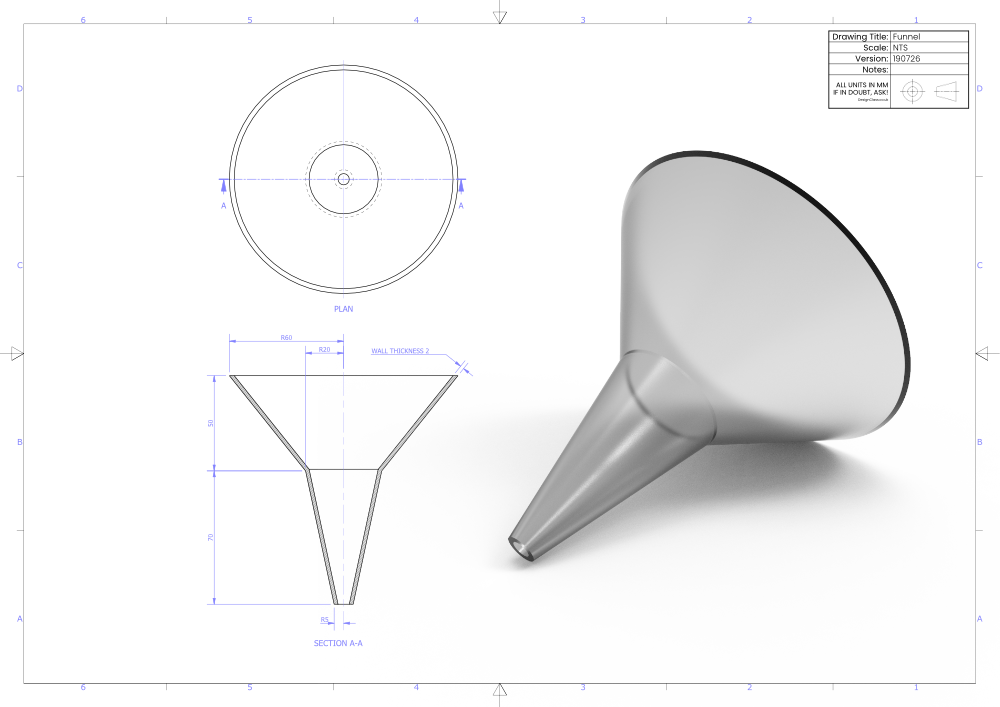

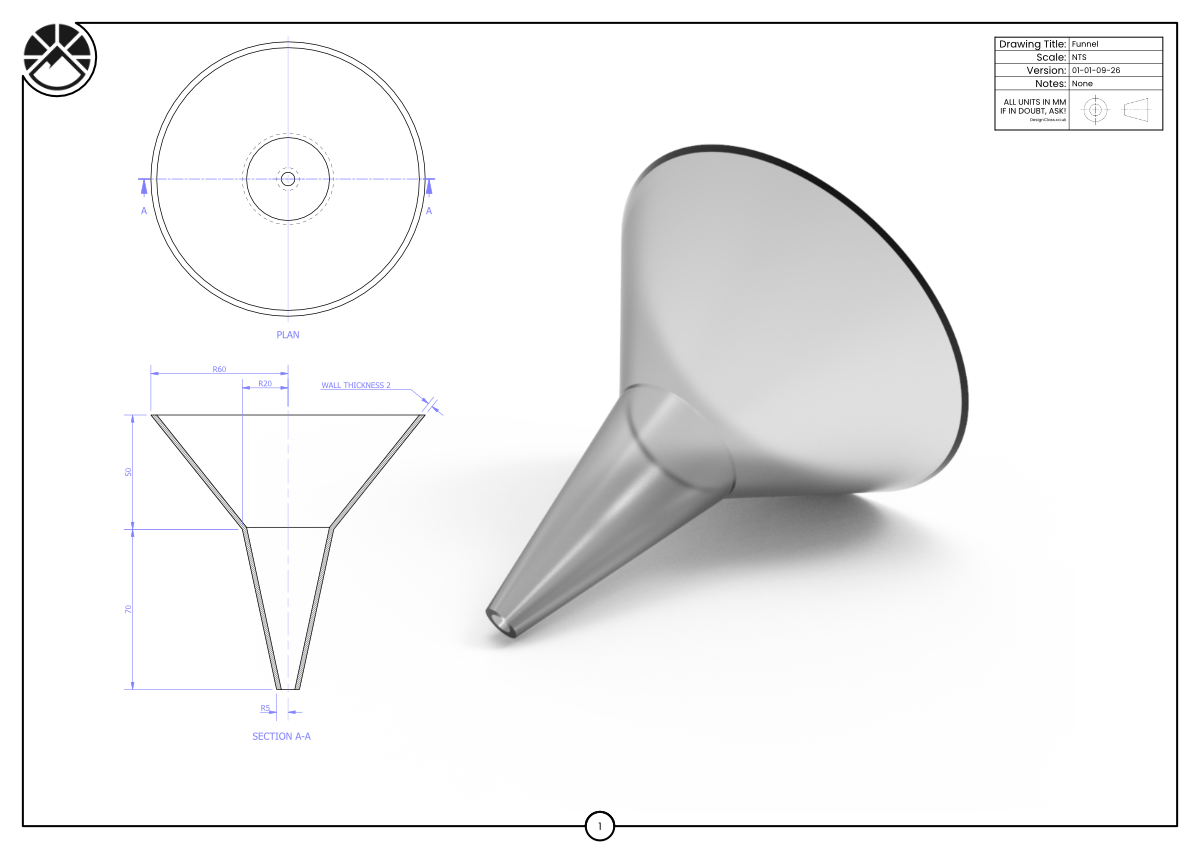

Challenge Drawing
-
