Making Drawings
Using the provided assembly, create an exploded isometric view that clearly shows how the parts separate.
Adjust explode distances for clarity and orient the view to match the lesson - no overlapping parts and titled correctly
Place the exploded view on the drawing sheet and apply an appropriate visual style.
Learning Intentions
Create and position exploded isometric views from assemblies.
Success Criteria
Exploded view is clear, evenly spaced and well‑oriented.
View style and layout match N5 presentation standards.

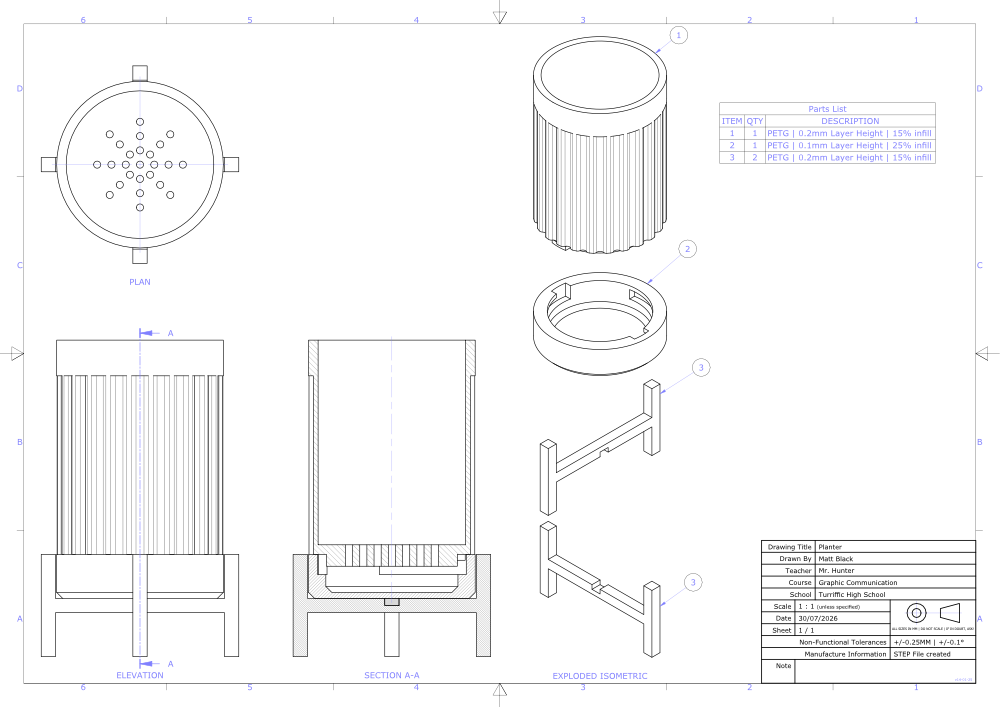

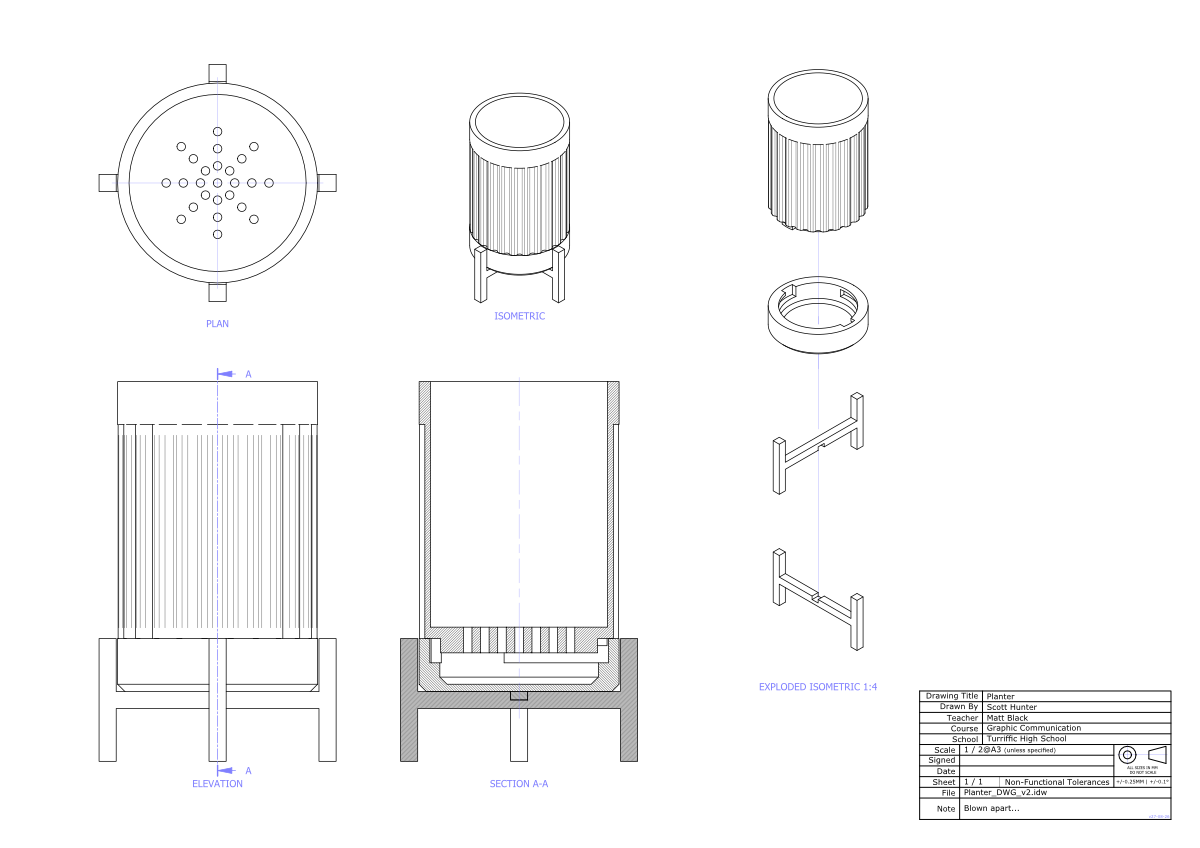

Challenge Drawing
