Assemblies

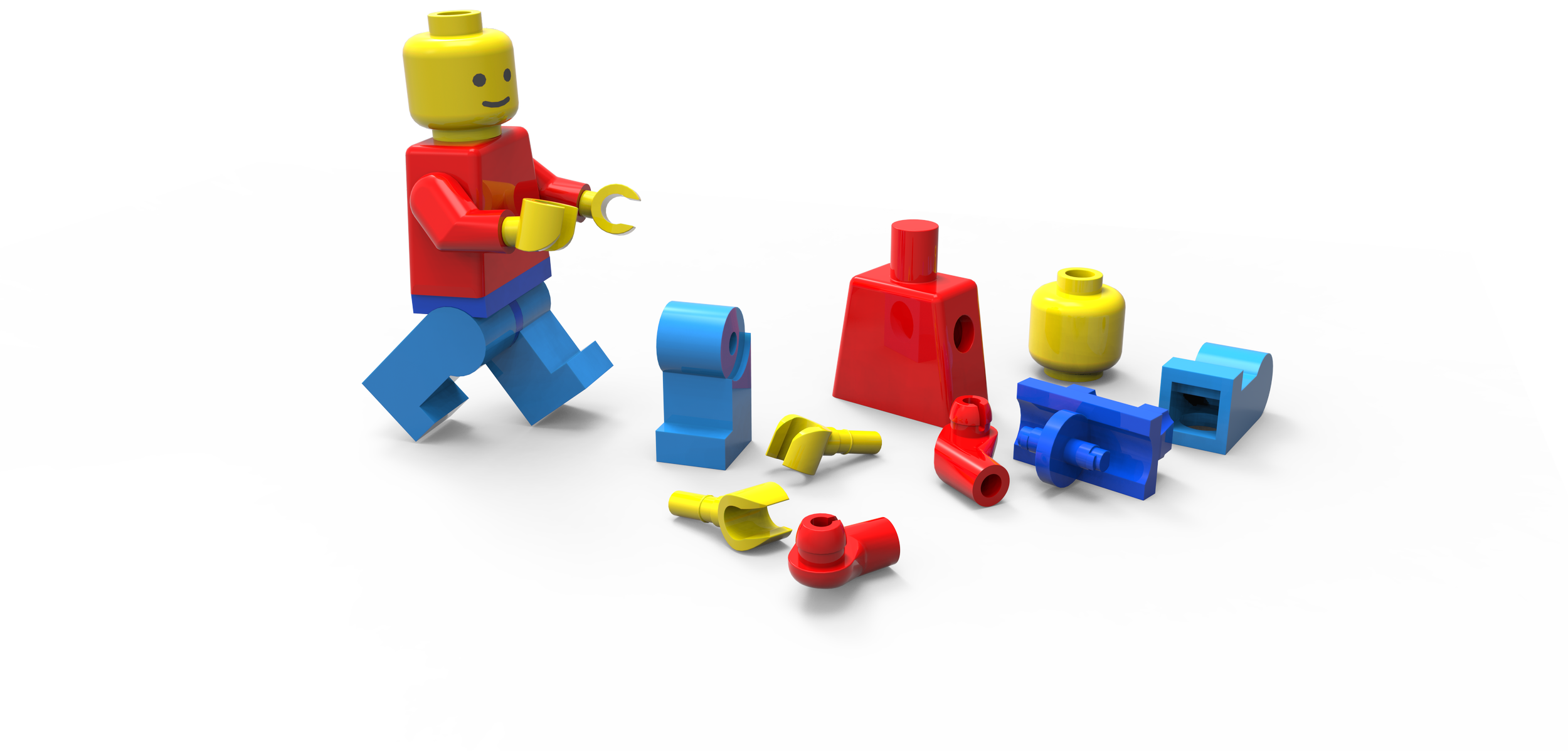

Import all the STEP components of the LEGO Minifigure into a new assembly workspace.
Begin by identifying the base component (usually the torso or hips).
Constrain each part in turn using Mate, Align, and Centre-Axis, constraints where appropriate.
Learning Intentions
Assemble a multi‑component model from a provided STEP file.
Apply constraints systematically to build a stable, articulated assembly.
Understand faces, edges and vertices.
Success Criteria
All parts are correctly positioned and constrained.
Rotational joints (arms, hands, head) move smoothly.
Fixed joints (hips, legs, accessories) are fully locked.
Final assembly is clean, organised, and behaves correctly when manipulated.
Challenge Drawing
-
Downloads you need to supplement this course.
Lego Mini-Fig File Download (STEP files inside a .zip)
