Making Drawings
Using the Spanner drawing, add all required dimensions to BS8888. Apply linear sizes (chain and parallel), diameters, radii, AF hex sizes, and chamfer/angle notes. Ensure dimensions are placed clearly, spaced consistently, and avoid duplication.
Learning Intentions
Add clear, accurate dimensions using BS8888 conventions.
Success Criteria
Linear, radial and diameter sizes are correct.
Chamfers, angles and AF sizes are labelled cleanly.

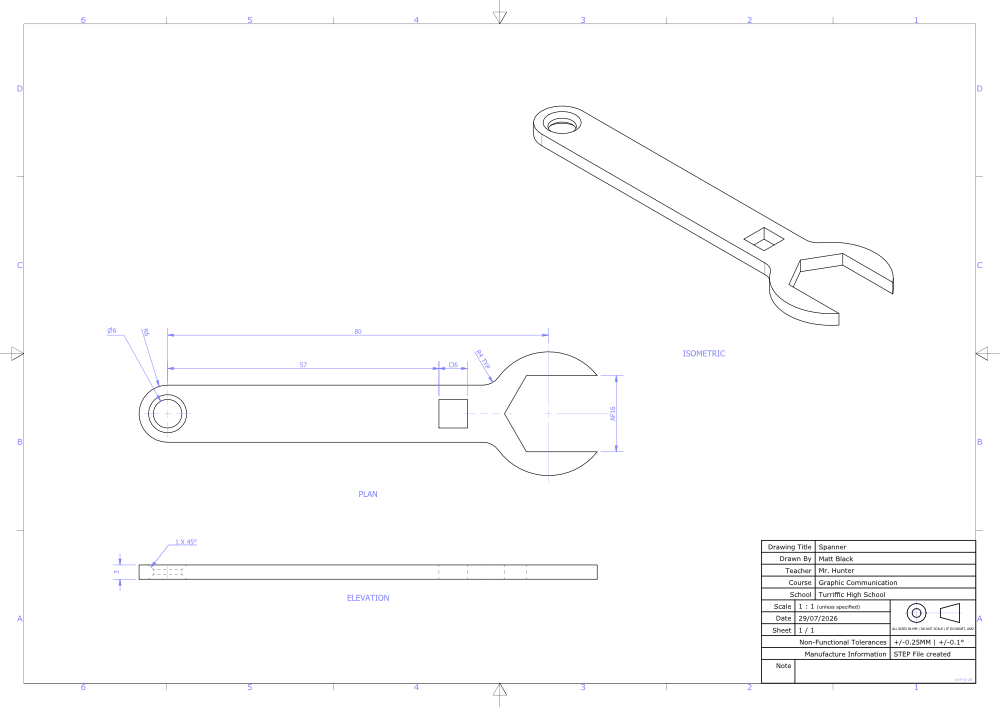

Challenge Drawing
-
Downloads you need to supplement this course.
