Sweep-along-a-path Challenges
Create the desk tidy by sketching a profile and sweeping it along the elliptical path.
Learning Intentions
Use the Sweep-along-a-path tool to extrude a profile along a curved path.
Control profile orientation relative to the path.
Combine sweep-along-a-path, shell, and fillets in a single part.
Success Criteria
Profile follows the R40 path cleanly.
Wall thickness is uniform.
R2 fillets and dimensions match the drawing.
Final part aligns with Section A‑A and the plan.

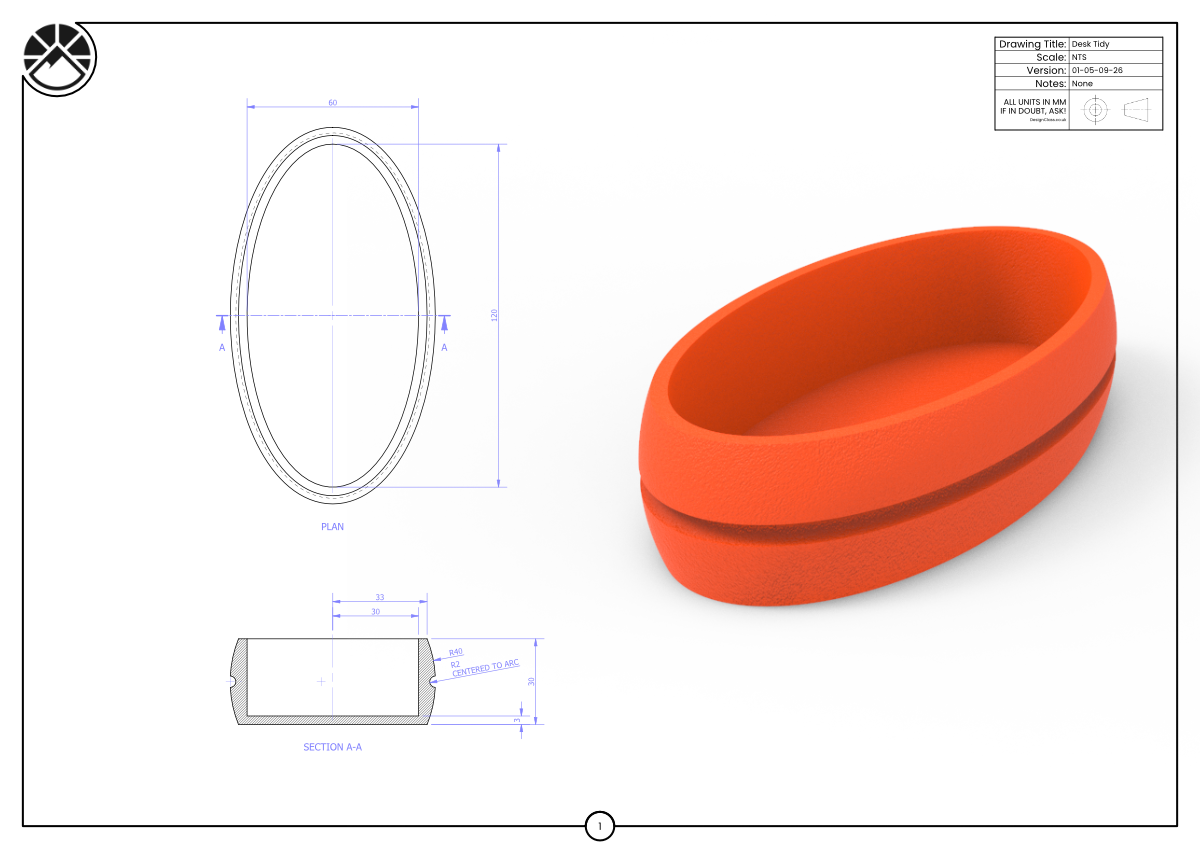

Challenge Drawing
-
Our downloads have everything you need to supplement this course.
