Revolve Challenges
Model the pot by sketching the full Section A‑A profile, applying the 2 mm wall thickness and R220 curve before revolving. Add the Ø6 holes using a vertical pattern (×10) and a radial array (×24) as shown in Detail B.
Learning Intentions
Use Revolve to create rotational solids.
Apply linear and circular patterns accurately.
Success Criteria
Profile matches key dimensions (R220, Ø6, 2 mm wall).
Hole arrays match 10 vertical × 24 radial.

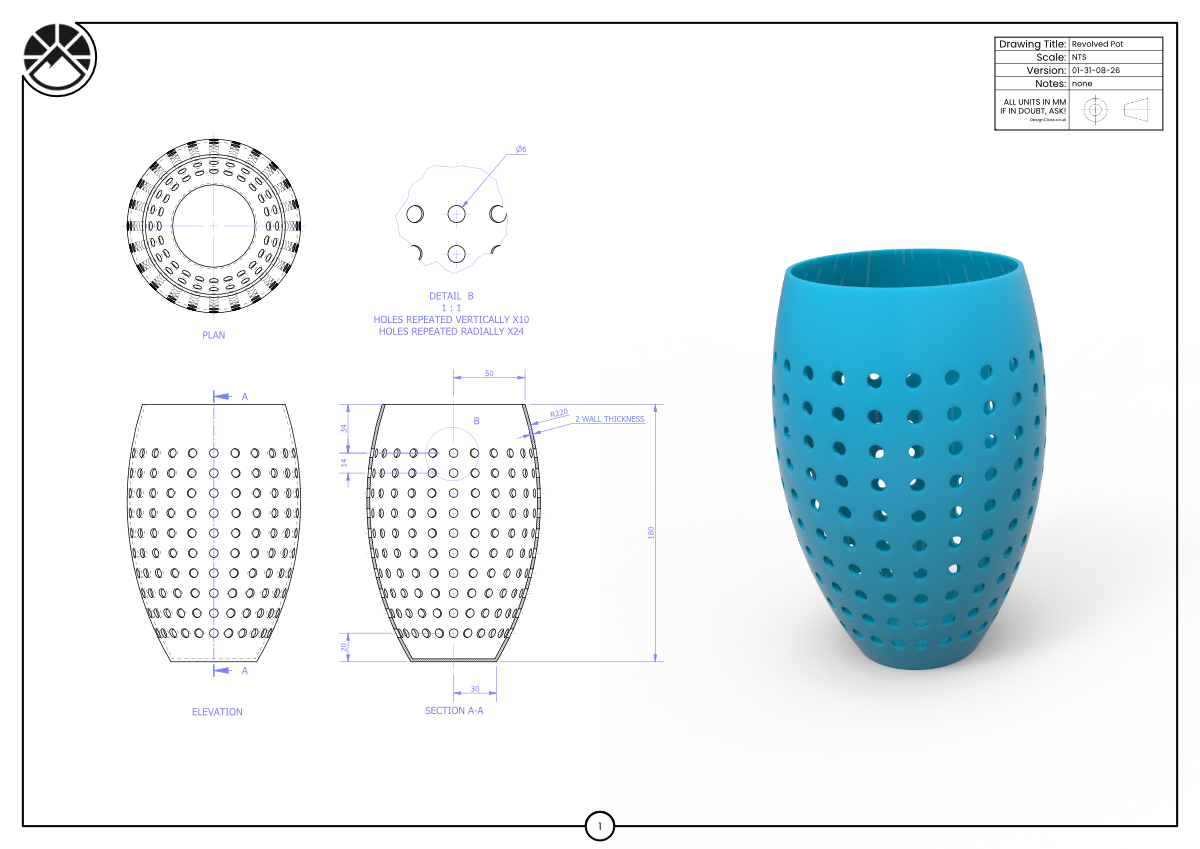

Challenge Drawing
-
