Loft Challenges
Create the Lofted Pot by sketching the top profile (AF80) and the bottom profile. Apply a 2 mm wall thickness using Shell after the loft is complete
Learning Intentions
Create lofted solids using matched vertex‑to‑vertex profiles.
Control loft behaviour by managing sketch order, constraints, and profile structure.
Apply Shell to produce thin‑wall lofted geometry.
Success Criteria
Top and bottom profiles have matching vertex counts and correct alignment.
Loft transitions smoothly with no twisting or deformation.
Shell produces clean 2 mm walls throughout.
Final pot matches the End Elevation and Bottom View.

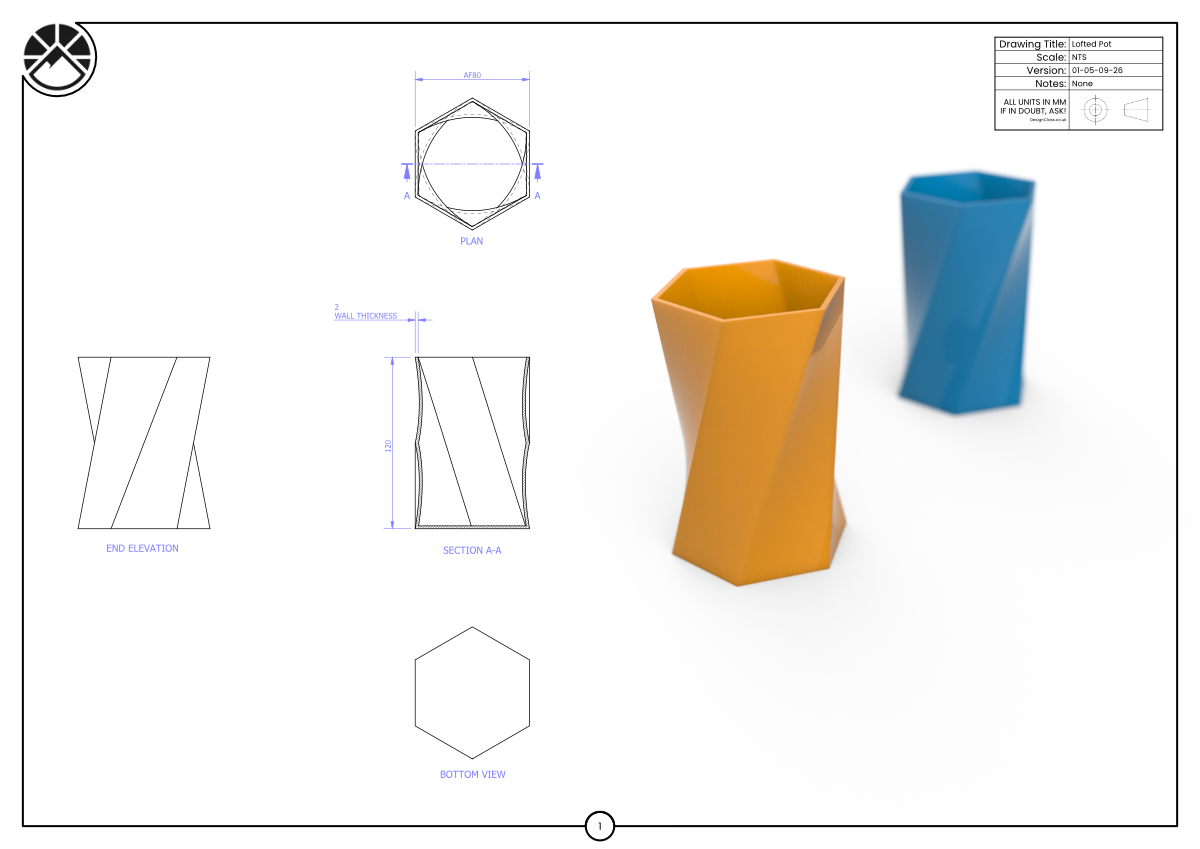

Challenge Drawing
-
