Helix Challenges
Model the G‑Clamp screw and body using ACME thread geometry. Create the male ACME thread on the screw shaft, using the correct trapezoidal thread profile from Detail F.
Create the female ACME thread inside the clamp body using the matching internal profile from Detail E.
Ensure both threads align correctly so the screw engages smoothly.
Learning Intentions
Create ACME thread profiles for internal and external threads.
Use helices for both male and female thread geometry.
Understand thread engagement, pitch matching, and clearance.
Combine thread modelling with sectional features and chamfers.
Success Criteria
Male and female ACME threads match pitch and profile.
Thread lengths follow the drawing (201 mm and 21 mm).
Internal thread clears correctly and engages smoothly.
Chamfers, fillets, and Ø12 bar alignment match all views.

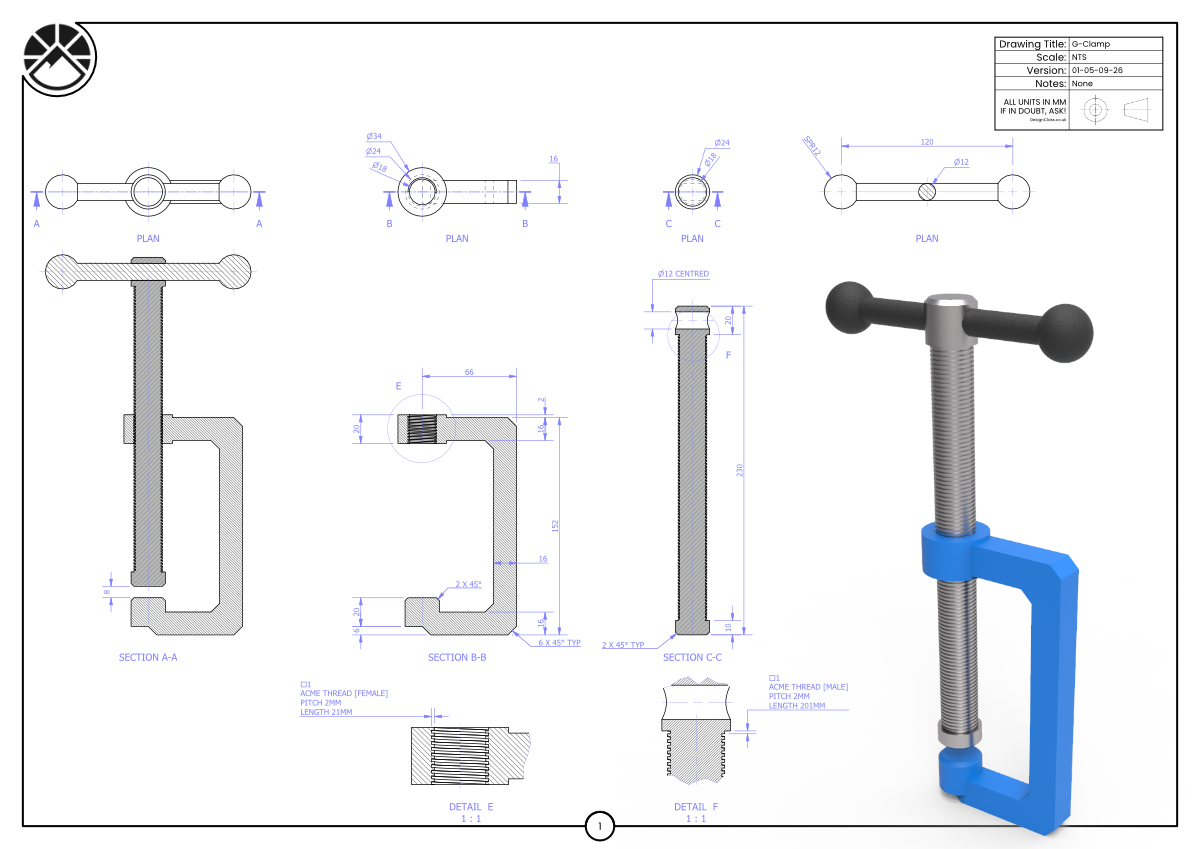

Challenge Drawing
-
