Extrude Challenges
Sketch the full profile using tangent arcs (R45, R40, R20) and small fillets (R2–R2.5). Apply tangent constraints to keep curves smooth, then extrude symmetrically from the workplane to maintain equal thickness.
Learning Intentions
Use tangent constraints to control curved geometry.
Extrude symmetrically for balanced parts.
Success Criteria
Radii and fillets match the drawing.
Tangency is correct and extrusion is centred on the workplane.

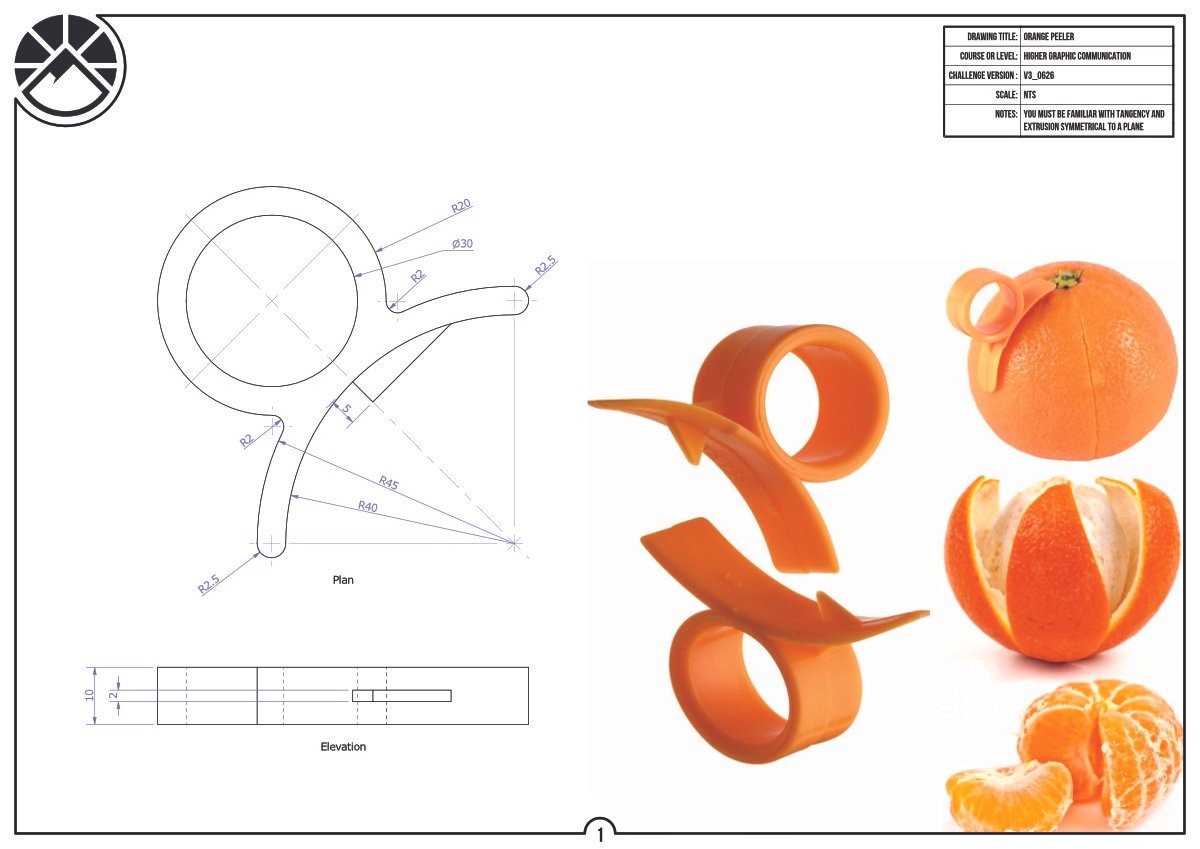

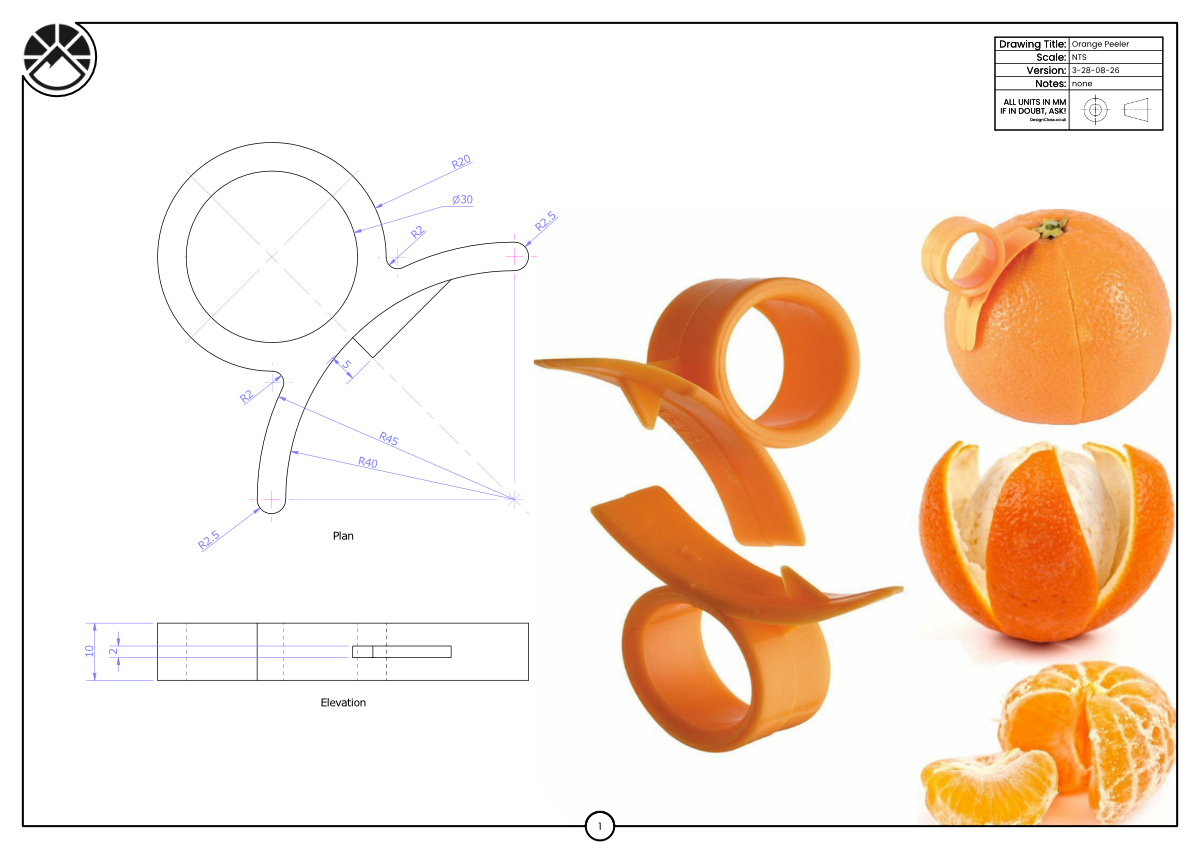

Challenge Drawing
-
