Revolve Challenges
Model the wine glass by sketching the full profile shown in Section A‑A, using accurate radii and dimensions before revolving it 360°.
Add the stem and base features using clean constraints.
Learning Intentions
Understand how profiles generate solids through the Revolve command.
Apply precise dimensions from a technical drawing.
Success Criteria
Profile matches key sizes (R260, R40.8, Ø12).
Revolved form is smooth, symmetrical and fully constrained.

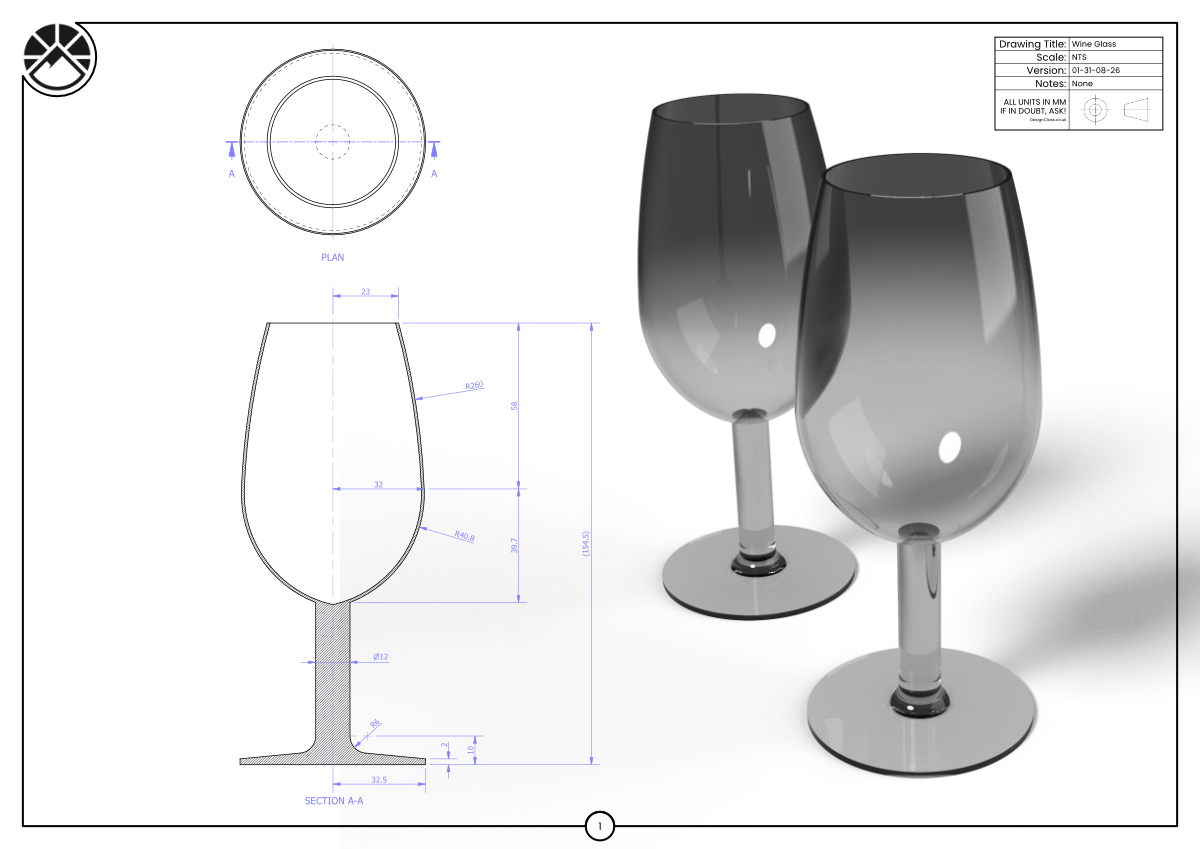

Challenge Drawing
-
Our downloads have everything you need to supplement this course.
Wine Glass STEP File
