Loft Challenges
Create the handle by sketching the end profile on one workplane, and the transition profile on a perpendicular offset workplane.
Use a curved path as a rail/centre‑line to control the loft between the two profiles.
Learning Intentions
Use perpendicular offset workplanes for loft profiles.
Control loft shape using a rail/centre‑line sketch.
Combine lofting with shell, fillets, and chamfers.
Success Criteria
Profiles are placed correctly on perpendicular planes.
Rail controls the loft smoothly along the R80 path.
Wall thickness is uniform.
Chamfers, fillets, and AF12 bar alignment match the drawing.

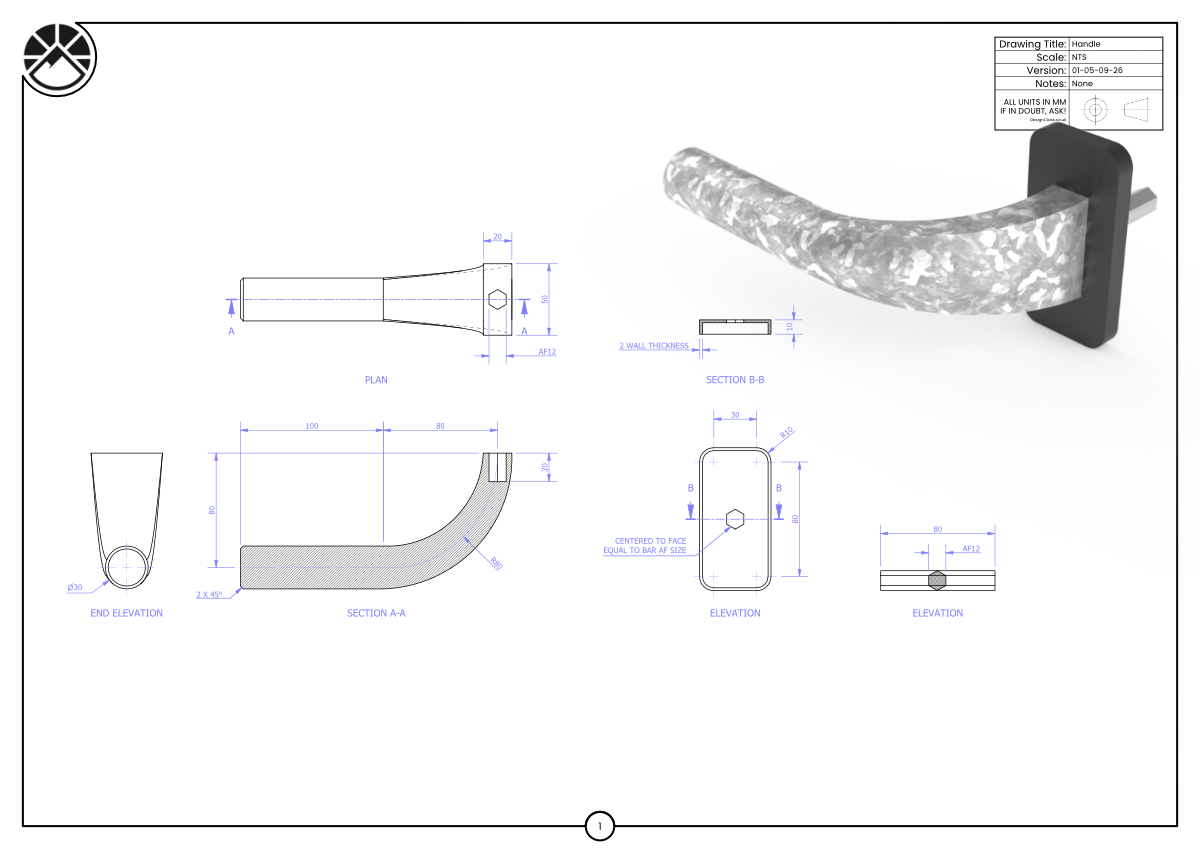

Challenge Drawing
-
