Extrude Challenges
Model the V‑block using multiple extruded bodies, adding the V‑cut, holes, radii and chamfers shown in the sectional views. Use bodies to create a single model and top‑down structure before separating into an assembly.
Learning Intentions
Use Extrude to build multi‑body parts.a
Interpret sectional views and threads accurately.
Success Criteria
Key sizes (Ø16, Ø10, Ø5, R40, R30) and chamfers match the drawing.
Bodies are structured cleanly for converting automatically to an assembly.

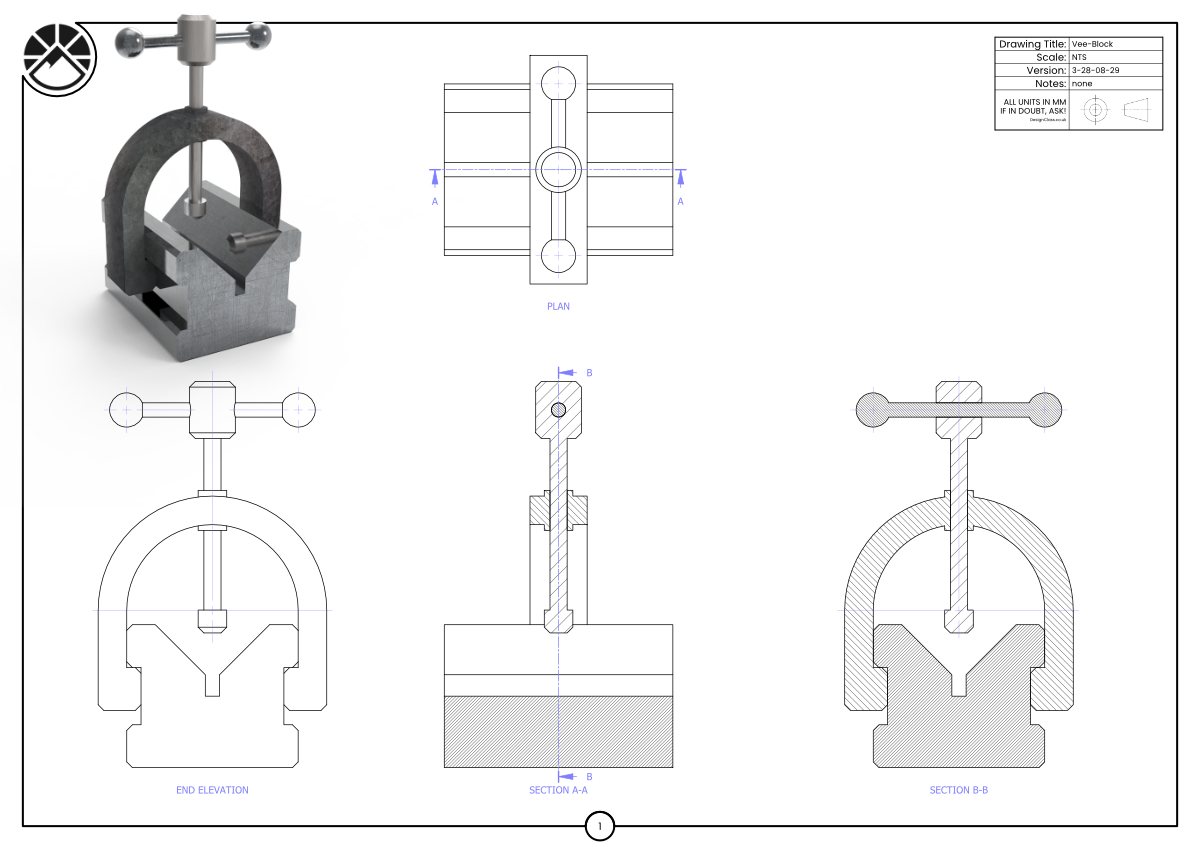

Challenge Drawing
-
