Loft Challenges
Create the transition piece by lofting between a circular profile and a square profile sized from the bottom view. Sketch each profile on its own offset workplane so the loft follows the correct height (100 mm).
Learning Intentions
Use offset workplanes to position loft profiles correctly.
Control loft behaviour between different profile types.
Use vertex matching to maintain loft stability.
Success Criteria
Loft transitions smoothly from circle to square.
Profiles are placed on correctly spaced offset workplanes.
Wall thickness is uniform.
Holes and chamfers match the drawing.
Final part aligns with all views.

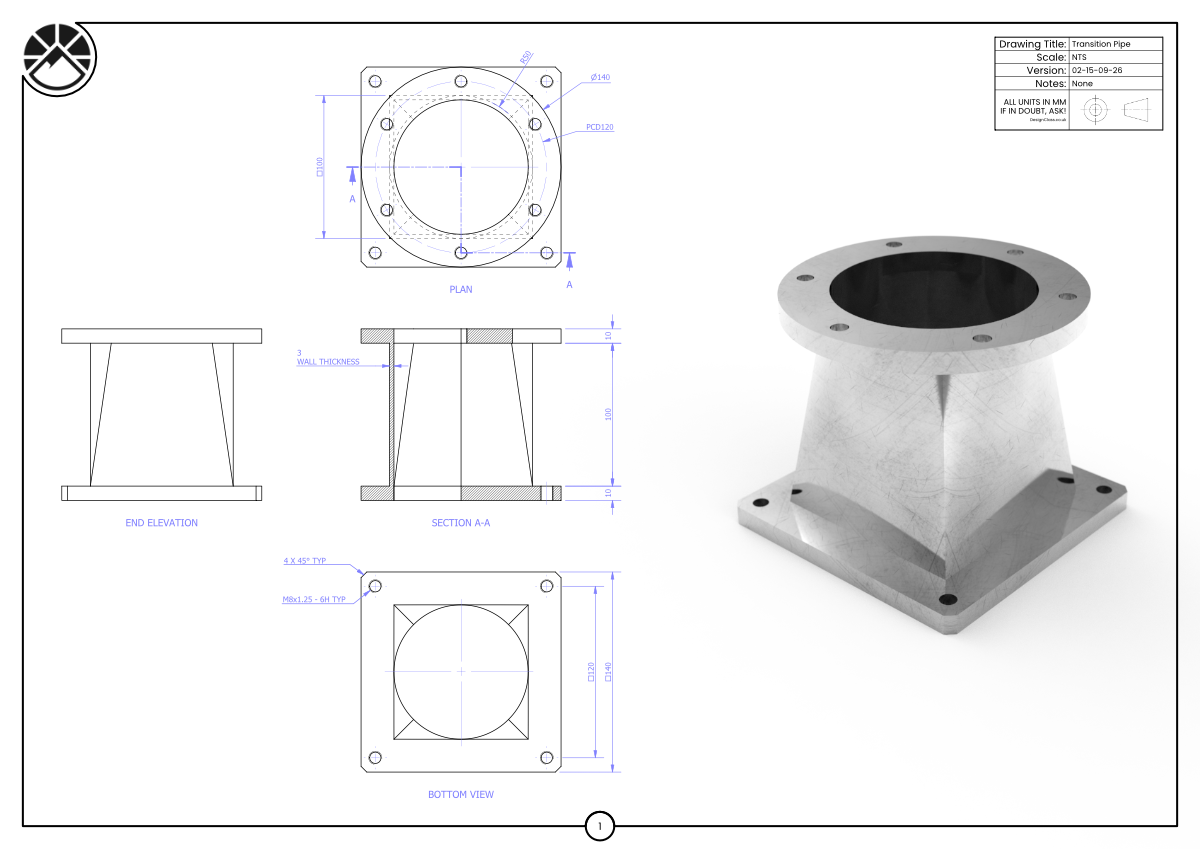

Challenge Drawing
-
