Revolve Challenges
Create the shade by sketching the full Section A‑A profile, applying accurate diameters and the 5 mm wall thickness before revolving the shape. Ensure the base, opening and taper match the drawing.
Learning Intentions
Use Revolve to form hollow rotational products.
Apply precise dimensions from sectional views.
Success Criteria
Diameters (Ø120, Ø60, Ø50, Ø24) and wall thickness are correct.
Profile is fully constrained and revolves cleanly.

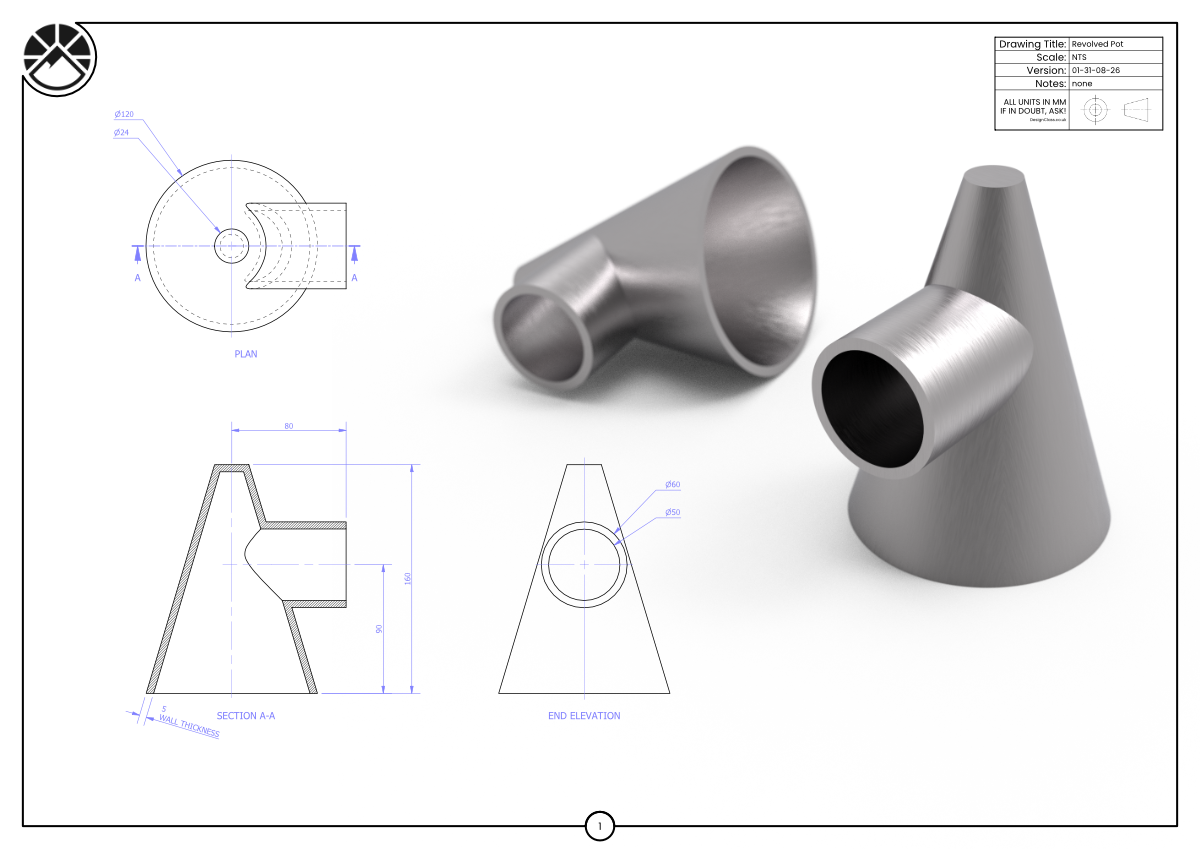

Challenge Drawing
-
Our downloads have everything you need to supplement this course.
